12. Database Encryption



YottaDB can encrypt data in database and journal files on selected platforms. Encryption protects data at rest (DAR), i.e., it protects against unauthorized access to data by an unauthorized process that is able to access disk files.

A plug-in architecture allows you to use your choice of encryption package. The characteristics of encryption are entirely determined by the package you choose - for example, YottaDB implements no "back doors" or "key recovery", and if you want such functionality, you need to choose or construct an encryption package that provides the features you want.

YottaDB distributes only the source code for the reference implementation of a plug-in that uses popular, widely available, encryption libraries. If the reference implementation plug-in meets your needs, you are welcome to compile and use it as distributed, but please read and understand the “Disclaimer” section below. You can also use it as a base to implement your own plug-in.

In the reference implementation, YottaDB uses a symmetric cipher to encrypt data. The reference implementation encrypts the key for the symmetric cipher with an asymmetric cipher using public and private keys. The private keys are stored in a key ring on disk locked with a password (or passphrase - the terms are used interchangeably).


Database encryption is only useful as one component of a comprehensive security plan and is insufficient as the sole means of securing data. The use of database encryption should follow from a good security plan. This document describes implementing encrypted YottaDB databases; it does not discuss security plans.

Proper security protocol never places an unencrypted password, even in obfuscated form and/or in an obscure location, on disk. With YottaDB database encryption, unencrypted passwords exist in the address space of processes accessing the database, which means that unencrypted passwords can theoretically be written to swap files when process memory is paged out. To be secure, an installation must handle this by means such as: using encrypted swap devices or files, ensuring that YottaDB processes are not paged out, or some other means to ensure that information in swap files is available only to the running process. In other words, even with respect to encryption, YottaDB database encryption is only part of a complete security infrastructure.

Our expertise is in YottaDB, not in encryption. Encryption needs vary. Furthermore, the use of encryption may be restricted - or required - by regulations applicable to your location and circumstances. Therefore, our approach is to create a plug-in architecture where you can choose your preferred encryption software. In the course of development, we tested it primarily with GNU Privacy Guard, the widely available implementation of Pretty Good Privacy. Ensure that you have confidence in (and confidence in the support for) whichever encryption software you choose, because failure of the encryption software is likely to leave your data unrecoverable. YottaDB itself performs no encryption, and encryption is performed exclusively by software that you install and configure. YottaDB neither endorses nor supports any specific encryption algorithm or library.

Furthermore, just as YottaDB allows for the use of your choice of encryption libraries, encryption libraries in turn require keys that must be managed. In its simplest form, key management requires both that only those who need a key have that key, and also that keys are not lost. Key management is two steps removed from YottaDB's implementation of database encryption, but is important to the successful use of encrypted databases. It must be part of your operations, policies and procedures. YottaDB strongly recommends that you understand in detail how to implement the infrastructure for whichever specific encryption you choose.

Limitations of YottaDB Database Encryption

Elements of your security infrastructure and management processes outside of YottaDB database encryption need to manage issues discussed in the following sections.

Data Not At Rest Not Protected

YottaDB database encryption is designed to protect data at rest. Applications execute business logic to manipulate and produce unencrypted data. Unencrypted data must exist within application processes, and can be accessed by any process with access rights to the virtual address space of a process containing unencrypted data. Also, data in transit between systems and between processes is not protected by YottaDB database encryption.

  • Before creating a core dump, YottaDB attempts to clear any keys that it is aware of within the process address space. The reference implementation also uses the encryption libraries so as to minimize the probability of keys appearing in core dumps. Since it is not possible to guarantee that keys will not appear in a process core dump, depending on your security policy, YottaDB recommends that you consider whether to disable the creation of core dumps by YottaDB processes accessing encrypted databases, or use other means to limit access to core dumps. Note also that the use of random byte sequences as keys makes it harder to discern them in a core dump.


In the event core dumps are needed to troubleshoot operational issues, they can always be re-enabled.

Keys in the Process Address Space/Environment

This is a corollary of the fact that data not at rest is not protected by YottaDB database encryption.

In order to encrypt and decrypt databases, keys must exist in the address space/environment of YottaDB processes. Furthermore, with the reference implementation, processes also need to have access to the user's private key, and to get access to the private key, they need access to the passphrase of the user's GPG keyring. In order to pass encryption to child processes, the passphrase also exists in the process environment, even if obfuscated. This means that any process that can access the address space or environment of a YottaDB process accessing encrypted databases has access to the passphrases and keys.

  • If an application provides some or all users access to a shell prompt or a YottaDB direct mode prompt, or allows that user to specify arbitrary code that can be XECUTE'd, those users can find ways to view and capture keys and passphrases. Note that, if a key or passphrase can be captured, it can be misused - for example, a captured GPG keyring passphrase is captured, it can be used to change the passphrase. You must therefore ensure that your application does not provide such access to users who should not view keys and passphrases.

  • This limitation makes it all the more important that those who have access to shell prompts, YottaDB direct mode prompts, etc. not leave sessions unlocked, even briefly, if it is at all possible for someone who should not have knowledge of keys and passphrases to access the sessions during that time. Consider using the YottaDB restriction facility to restrict the access to YottaDB facilities which can be used to obtain a shell prompt or the YottaDB direct mode prompt.

  • If you forget the passphrase, there is no way to decrypt the data from the encrypted regions of a database. Therefore, ensure that you have secure password management procedures to handle password storage and retrieval of the keyring passphrase.

Long lived Keys

A database file has an extended life. In typical operation, only a minuscule fraction of the data within a database changes each day. As changing an encryption key requires re-encrypting all the data, this means encryption keys for files have long lives. Since long-lived keys are security risks - for example, it may not be feasible to change them when an employee leaves - key management must therefore be part of the overall security plan. At a minimum, long lived keys require two stage key management - a database key with a long life, not normally accessed or viewed by a human, stored in a form encrypted by another key that can be changed more easily.

Furthermore, a key must be retained at least as long as any backup encrypted with that key; otherwise the backup becomes useless. You must have appropriate procedures to retain and manage old keys. Since successful data recovery requires both keys and algorithms, the retention processes must also preserve the encryption algorithm.

Voluminous Samples of Encrypted Data

Database and journal files are large (GB to hundreds of GB). This large volume makes database encryption more amenable to attack than a small encrypted message because having many samples of encrypted material makes it easier to break a key.

Encryption Algorithms Neither Endorsed nor Supported by YottaDB

YottaDB neither endorses nor supports any specific encryption algorithm.

The selection of an encryption algorithm is determined by many factors, including but not limited to, organizational preferences, legal requirements, industry standards, computational performance, robustness, the availability of encryption hardware, etc. No algorithm meets all needs.

Therefore, YottaDB provides a "plug-in" architecture for encryption algorithms, which allows you to integrate your preferred encryption software with YottaDB. In the YottaDB development environment, we created variations on a reference implementation using popular encryption packages for our validation. We tested each reference implementation variation on at least one computing platform, and one reference implementation variation on each computing platform. This document lists which encryption package we tested on which platform.

You take all responsibility for the selection and use of a specific encryption package. Please be aware that:

  • All encryption libraries that run within the address space of a YottaDB process must conform to the rules of any functions for YottaDB, as documented, including but not limited to being single threaded, not altering YottaDB's signal handlers, restricting the use of timers to the API provided by YottaDB, etc.


YottaDB provides functions ydb_hiber_start(), ydb_hiber_start_any(), ydb_start_timer(), ydb_cancel_timer(), ydb_jnlpool_detach(), ydb_malloc() and ydb_free() which can be freely used by plug-ins.

  • Malfunction of encryption software or hardware can render your data irrecoverable. As part of your comprehensive organizational risk management strategy, please consider the use of logical multi-site application configurations, possibly with different encryption packages and certainly with different encryption keys.

  • The cipher used for database encryption must not change the length of the encrypted sequence of bytes. In other words, if the cleartext string is n bytes, the encrypted string must also be n bytes.

No Key Recovery

The reference implementation of YottaDB database encryption has no "back door" or other means to recover lost keys. We are also not aware of back doors in any of the packages used by the reference implementation.

Lost keys make your data indistinguishable from random ones and zeros. While YottaDB recommends implementing a documented key management process including techniques such as key escrow, ultimately, you take all responsibility for managing your keys.

Human Intervention Required

At some point in the process invocation chain, the reference implementation requires a human being to provide a password that is placed (in obfuscated form) in the process environment where child processes can inherit it. If you want to be able to access encrypted databases without any human interaction, you must modify the reference implementation, or create your own implementation.

For example, if you have a YottaDB based application server process that is started by xinetd in response to an incoming connection request from a client, you may want to consider an approach where the client sends in a key that is used to extract an encrypted password for the master key ring from the local disk, obfuscates it, and places it in the environment of the server process started by xinetd. If the application protocol cannot be modified to allow the client to provide an additional password, xinetd can be started with the $ydb_passwd obfuscated password in its environment, and the xinetd passenv parameter used to pass $ydb_passwd from the xinetd process to the spawned server process.

MM Databases

YottaDB database encryption is only supported for the Buffered Global (BG) access method. It is not supported for the Mapped Memory (MM) access method. See “Alternatives to Database Encryption ” below, for other options.

Alternatives to Database Encryption

On some platforms, you may be able to use disk drives with built-in encryption, or encrypted file systems to protect data at rest. These may or may not be as secure as YottaDB database encryption: for example, once an encrypted file system is mounted, the files can be accessed by any process that has the appropriate permissions; with YottaDB database encryption, each process accessing a database file must individually have access to the keys for that database file.

Device IO

The built-in interface to encryption is implemented only for data in database, journal, backup and certain formats of extract files. To encrypt IO

Alternatively, you can call encryption routines from YottaDB using the external call interface.


YottaDB does not encrypt GT.CM (GNP/OMI) network traffic. When needed, there are excellent third party products for implementing secure TCP/IP connections: software solutions as well as hardware solutions such as encrypting routers.

As with any YottaDB process that accesses databases, the Update Process, helper processes and GT.CM server all require provisioning with keys to enable their access to encrypted databases.

When a GT.CM server has a key for an encrypted database, any client connecting to the server can access encrypted records in that database.


For database encryption, the plugin reference implementation also provides an option to use libgcrypt (from GnuPG) and libcrypto (OpenSSL) in "FIPS mode" removing a need to modify the plugin for sites that require certification for compliance with FIPS 140-2. When the environment variable $ydb_crypt_fips is set to 1 (or evaluates to a non-zero integer, or any case-independent string or leading substring of "TRUE" or "YES"), the plugin reference implementation attempts to use either OpenSSL or Libgcrypt to provide database encryption that complies with FIPS 140-2.

Before using FIPS mode on these platforms, ensure that your OpenSSL or Libgcrypt installation provides a validated FIPS 140-2 implementation (see https://www.openssl.org/docs/fips.html).


Achieving FIPS 140-2 certification requires actions and controls well beyond the purview of YottaDB, including underlying cryptographic libraries that are certifiably FIPS compliant, administrative controls, and so on. YottaDB neither provides cryptographic libraries with YottaDB nor recommends the use of any specific library.

Theory of Operation

This section describes the operation of YottaDB database encryption with the reference implementation. A subsequent section describes the functions of the reference implementation which can be reworked or rewritten to use different encryption packages.

Definition of Terms




An encryption algorithm or the implementation of an encryption algorithm, for example, the symmetric cipher AES 256 CFB.

Hash (or Fingerprint)

A signature algorithmically derived from an object which has a certain to a very impressive probability that it uniquely identifies an object within a set of similar objects.

Key length

The number of bits comprising a key. Longer key lengths may result in stronger encryption (more difficult to break) but require more computation.

Key management

The generation, distribution, and access of keys. The reference implementation of database encryption uses:

  1. symmetric keys to encrypt data and index records.

  2. public keys to encrypt symmetric keys (so they can be placed on disk).

  3. private keys to decrypt symmetric keys.

  4. passwords to encrypt private keys (so they can be placed on disk).

Master key file

This is a libconfig format configuration file which contains pairs of entries indicating which symmetric key is used to encrypt/decrypt database records. Database records can be found in database, journal, extract and backup files.


A technique used to make data difficult to discern on casual observation. A common example is "pig Latin". Since the password used for the GPG keyring exists in the process' environment with the reference implementation, YottaDB obfuscates it to reduce the chance that visual access to process information (say during debugging) inadvertently exposes the password.

Password (or Passphrase)

A secret word or phrase used in the reference implementation to protect a private key on disk (a password should never be on disk in the clear, which is the electronic equivalent of taping it to your monitor with a sticky note).

Public key/Private key (or Asymmetric keys)

A pair of keys used so that what one key encrypts the other can decrypt. The private key is sometimes referred to as the "secret" key (because it is not shared as opposed to the public key which is; the private key should never be on disk in the clear). In the reference implementation, asymmetric keys are used to encrypt the symmetric database key. This allows a master to encrypt a symmetric database key with a user's public key (so only the user can decrypt it with their private key).

Encryption using a public key/private key pair is referred to as "public key encryption". The reference implementation uses GNU Privacy Guard with associated libraries libgpgme and libgpg-error for asymmetric key encryption.

Symmetric key

The same key used to both encrypt and decrypt. Symmetric ciphers are faster than asymmetric ciphers. Encryption using a symmetric key is referred to as "symmetric key encryption". Depending on the platform, the reference implementation uses either GNU Privacy Guard's libgcrypt, or libcrypto from OpenSSL (http://openssl.org/), for symmetric key encryption.



YottaDB implements database encryption with a plug-in architecture that allows for your choice of cipher. Any code statically or dynamically linked in to a YottaDB process must meet the requirements of code used for external calls. The YottaDB distribution includes a source reference implementation that interfaces to several common packages and libraries. You are free to use the reference implementations as is, but remember that the choice of cipher and package is yours, and YottaDB neither recommends nor supports any specific package.


In any given instance, you must use the same encryption libraries for all databases accessed by the processes of an application instance, but each database file can have its own key. Of course, all processes accessing a database or journal file must use the same encryption algorithm and key.

Data in Database and Journal Files

A YottaDB database file contains several parts:

  1. A file header containing information pertaining to the database file itself.

  2. Global and local bit maps, which together specify which blocks in the file are in use and which blocks are free.

  3. Data blocks containing the actual data, as well as index blocks containing structural information providing paths to the actual data (there is a directory tree, and one or more global variable trees). Each data or index block consists of a block header, and one or more data records.

In an encrypted database, YottaDB encrypts only the index and data records in a database. The file header, bit maps, and block headers are not encrypted, i.e., information relating to database structure is not encrypted. This means some system administration operations such as turning journaling on and off, do not require the encryption key for a database file. Others, such as MUPIP EXTRACT, do.

Journal files contain data records, such as before image records, update records, and after image records, as well as structural information such as transaction markers, process records, etc. Again, only records that contain data - before image records, update records and after image records - are encrypted. Records that contain structural information remain in cleartext.

Records subject to encryption are collectively referred to in the document as data records.

Symmetric and Asymmetric Ciphers

For performance, a symmetric cipher is used to encrypt and decrypt data records. Asymmetric ciphers are used by the reference implementation to secure the symmetric cipher keys stored on disk. A password is used to secure the private key which is stored on a key ring on disk. The following illustration is an overview of YottaDB database encryption in the reference implementation using GNU Privacy Guard (GPG) to provide the ciphers.


Key Ring on Disk

A passphrase protects the key ring on disk that contains the private key uses to encrypt the asymmetric database keys. YottaDB requires this passphrase either in an obfuscated form as the value of the ydb_passwd environment variable, or,if ydb_passwd is set to "" and then typed at the GTMCRYPT passphrase prompt defined in the reference implementation of the plugin. YottaDB obfuscates the passphrase to prevent inadvertent disclosure, for example, in a dump of the environment that you may submit to YottaDB for product support purposes, the passphrase in the environment is obfuscated using information available to processes on the system on which the process is running, but not available on other systems.

You can provide the passphrase of the key ring to YottaDB in one of the following four ways:

  • Set the ydb_passwd environment variable to an obfuscated form of the passphrase of the keyring using the maskpass utility but do not define $ydb_obfuscation_key. For example:

    echo -n "Enter keyring passphrase: " ; export ydb_passwd=`$ydb_dist/plugin/gtmcrypt/maskpass|cut -f 3 -d " "`

You should use this method when you need to restrict the access of encrypted regions to the same $USER using the same YottaDB distribution. $ydb_passwd can be passed between from the parent process to a child process with the Job command. Note that $ydb_passwd is the only way for a child process to receive a password from a parent process.

  • Set the environment variable ydb_passwd to "". In this case, YottaDB uses the default GTMCRYPT passphrase prompt to obtain a password at process startup and uses that value as $ydb_passwd for the duration of the process. The GTMCRYPT passphrase is defined in a C macro GTMCRYPT_DEFAULT_PASSWD_PROMPT in the gtmcrypt_util.h file of the reference implementation plugin. The default is Enter Passphrase:.

  • When the environment variable ydb_passwd is not set, create a one line YottaDB program as in the following example:

    echo 'zcmd ZSYstem $ZCMdline  Quit' > zcmd.m

and use it to invoke the MUPIP or DSE command. For example:

$ ydb_passwd="" yottadb -run zcmd mupip backup \"*\"

The empty string value of $ydb_passwd causes the YottaDB process to prompt for and set an obfuscated password in its environment which it then passes to the MUPIP program. Shell quote processing requires the use of escapes to pass the quotes from the ZSYstem command to the shell.


An obfuscated password in the environment is the only way that other YottaDB processes (MUPIP and DSE) can be provided with a password. If they encounter an encrypted database or journal file, and do not have an obfuscated password to the key ring on disk in the environment, they terminate with the error message "YDB-E-CRYPTINIT, Error initializing encryption library. Environment variable ydb_passwd set to empty string. Password prompting not allowed for utilities".

  • Set the gtm_obfuscation_key environment variable to the absolute location of a file having any contents and then set the environment variable ydb_passwd to an obfuscated form of the passphrase of the keyring using the maskpass utility. maskpass is a stand-alone program that takes the passphrase from STDIN and writes its obfuscated value in the form of Enter Passphrase: <obfuscated_value> as its output. The <obfuscated_value> can then be set for the environment variable ydb_passwd. For example:

    export ydb_obfuscation_key="/path/to/secret_content"
    echo -n "Enter keyring passphrase: " ; export ydb_passwd=`$ydb_dist/plugin/gtmcrypt/maskpass|cut -f 3 -d " "`

The maskpass utility uses the hash of the contents of the $ydb_obfuscation_key file to obfuscate the passphrase. You should use this method when you need to allow multiple users to use $ydb_passwd to access the database. Note that YottaDB would not permit access to the database with the hashed passphrase set in $ydb_passwd if $ydb_obfuscation_key is not available in the environment. YottaDB recommends setting the ydb_passwd environment variable using a $ydb_obfuscation_key.

Remember that $ydb_passwd is not a database authentication mechanism. $ydb_passwd provides the keyring passphrase to YottaDB and the requirement to put it in an obfuscated form is for better security.

Master Key Configuration File and Encryption Keys

The reference implementation uses the database section of the $ydb_crypt_config file to obtain the symmetric keys for encrypting a database file. The environment variable ydb_crypt_config specifies the location of the master key configuration file which contains dat and key combinations. A dat entry specifies the absolute location of the database file and the key entry specifies the absolution location of the encryption key. The master key configuration file leverages the popular libconfig library (http://www.hyperrealm.com/libconfig as well as via package managers of popular Linux distributions).

Note that encryption key files are text files which can even be faxed or e-mailed: since they are secured with asymmetric encryption, you can transmit them over an insecure channel.

Memory Key Ring

For each key_filename, the YottaDB process (M, MUPIP or DSE) builds a memory key ring from the key ring on disk and the master key file. The memory key ring contains a list of elements where each element consists of a filename, a symmetric cipher key, and a cryptographic hash of that symmetric cipher key. Using the private key obtained from the key ring on disk, YottaDB obtains the symmetric keys from key files pointed to by the master key file.

Database and journal file headers include a cryptographic hash of the encryption key and algorithm used for that file. When opening a file, YottaDB uses the key in the memory key ring whose hash matches that in the header - the database_filename in the key ring is ignored. Older keys need not be deleted until they are no longer required (for example, an older key may be required to access a restored backup copy of a database). Permitting the same database_filename to occur multiple times in a master key file also enables one master key file to be used for multiple instances of an application. This ensures that the correct key for a file is always used, even if the file has been renamed, copied from another location, etc. - the correct key must of course be available in the memory key ring; if no such key exists, YottaDB triggers a CRYPTKEYFETCHFAILED error.

Only for MUPIP CREATE does YottaDB rely on the database_filename in the key ring. MUPIP CREATE computes the cryptographic hash for the correct key to place in the database file header. If the same database_filename occurs more than once in the master key file (and hence in the memory key ring), MUPIP CREATE uses the key_filename associated with the last occurrence of that database_filename in the master key file.

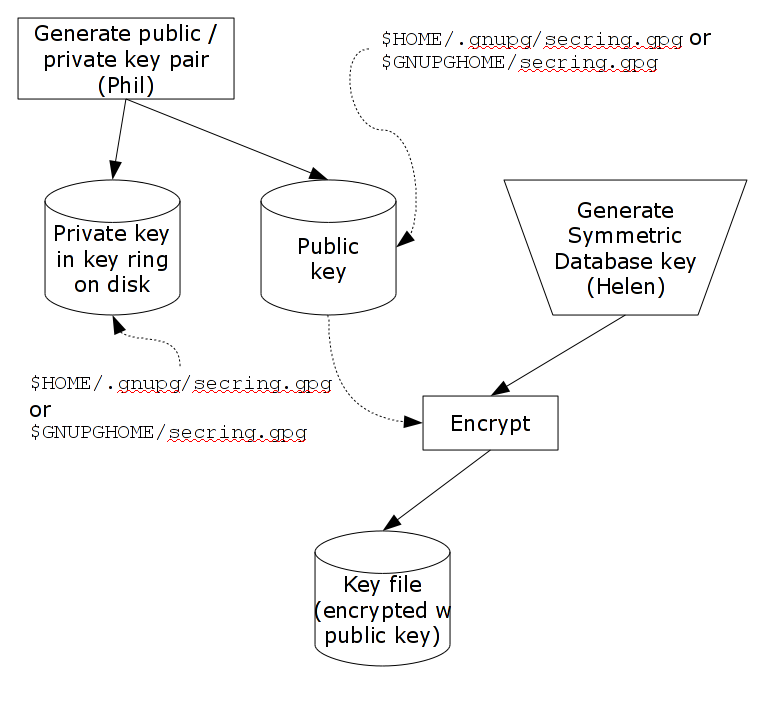

This is illustrated by the following illustration:


Key Validation and Hashing

As discussed earlier, a process uses the key in its memory key ring whose hash matches the hash in the database or journal file header; the file name is not checked. MUPIP CREATE computes the hash value for the key at database creation time, and writes it to the database file header. When YottaDB creates a new journal file for an encrypted database file, it copies the hash from the database file header into the journal file header. Similarly, MUPIP EXTRACT -FORMAT=BINARY, places the database file hash in the extract, which is encrypted; indeed, since an extract can come from multiple database files, extract places the hash from the file header of each encrypted database in the extract. When processing each section in the extract, MUPIP LOAD uses that key in its memory key ring that matches the hash for each section of the extract.

Database Operation

On disk, database and journal files are always encrypted - YottaDB never writes unencrypted data to an encrypted database or journal file. YottaDB uses decryption when reading data records from disk, and encryption when it writes data records to disk.

With encrypted databases, the number of global buffers allocated is automatically doubled. For example - if the database file header specifies 2000 global buffers, YottaDB automatically allocates 4000 global buffers when the file is opened. Global buffers are used in pairs: one global buffer has a copy of the encrypted database block as it exists on disk and the other has a copy of the unencrypted version. There is no change to the size of the control structures (including lock space and journal buffers) in shared memory. So when using encrypted databases, you need to adjust your calculations of memory and shared memory usage accordingly: for each open database file, the shared memory usage will increase by the number of global buffers times the block size. For example, if the block size of a database file is 4KB, with 2048 global buffers, and the shared memory segment for that database file occupies 9MB when unencrypted, it occupies 17MB when the file is encrypted. Depending on your operating system you may need to change system configuration and tuning parameters. Other than global buffers, there is no change to memory usage with encryption.

Encrypted databases consume additional CPU resources for encryption and decryption. Without detailed knowledge of the chosen algorithms, the application patterns and hardware configuration, it is not possible to predict whether this will be appreciable, and whether application throughput will be affected. As far as possible, YottaDB has attempted to engineer YottaDB database encryption so that the additional CPU resources are consumed outside software critical sections. The intention is to minimize the impact of encryption on application throughput, at least on computer systems that are not starved of CPU resources. You should determine the actual impact of encryption on your application when it runs on your system, preferably using a test environment that exactly reflects your production environment.

Examples of Use

The commands here are all line oriented to illustrate that they can be automated by being called from YottaDB or from a shell script. For interactive use, there are many graphical user interfaces (GUIs) usable with GPG. Although these examples were generated on Linux, usage on other UNIX systems should be virtually identical.

Key Management

This is an example of key management using GPG and the reference implementation.

Helen Keymaster (helen@yottadb) is the master of keys, and provides a database key to Phil Keyuser (phil@yottadb). Helen does not manage the database. Phil is the database manager, but he is not the master of keys. In order to communicate securely, Helen and Phil each set up a GPG keyring, generate a public/private key pair, and exchange & authenticate each other's public keys. This permits a secure transfer of the key for the symmetric cipher used for the database. Warning: If you attempt key generation on a virtual machine, or other computer system that does not have a good supply of entropy, the gen_key_pair.sh script could take a very, very long time. Similarly, a key quality of 2 for the gen_sym_key.sh script on a machine without a plentiful supply of entropy can also tax your patience. Use a physical computer system with a lot of entropy. If you are able to, use an entropy gathering daemon such as egd (http://egd.sourceforge.net), or consider acquiring an entropy source such as the Entropy Key (http://www.entropykey.co.uk) that you can use to distribute entropy to your virtual machines.

The workflow is as follows:

Helen and Phil each create a new GPG keyring and a new public-private key pair (This step can be omitted if they already have GPG keyrings and public and private keys. However, see the section below on operation with GNU Privacy Guard version 2.). In the gen_keypair.sh script GPG generates the key pair [see note], putting public and private keys in the key ring; the latter locked with a passphrase. The public key is also exported to a text file, and its fingerprint is displayed in the terminal session. Each of them e-mails (or otherwise sends) her/his public key text file to the other. One alternative to the direct sending of public keys is to upload them to a keyserver, such as the MIT PGP Public Key Server at http://pgp.mit.edu . This is illustrated below; first Helen, then Phil (if the GNUPGHOME environment variable is not set, it will default to $HOME/.gnupg).


Generating a public-private keypair can consume a significant amount of the entropy in a computer system. Running out of entropy can cause the operation to stall until sufficient entropy becomes available. You may need to consider external entropy sources or entropy gathering daemons for computer systems on which key generation will occur frequently. For encrypted databases on virtual machines, you may need to generate public-private keypairs on host computers and then ship the keyrings to the virtual guests.


Helen e-mails helen@yottadb_pubkey.txt, the file containing her exported public key to Phil, and Phil sends phil@yottadb_pubkey.txt, his exported public key to Helen. To protect against "man in the middle" attacks, they speak on the phone to exchange key fingerprints, or send each other the fingerprints by text message, or facsimile - a different communication channel than that used to exchange the keys. They use the import_and_sign_key.sh shell script. After importing and signing each other's public keys, Phil and Helen can communicate securely with each other, even in the presence of eavesdroppers. Helen's keyring with Phil's imported key is shown below:


Using the gen_sym_key.sh script, Helen generates a symmetric cipher key for Phil to use in encrypting a new database file cust.dat. With a key strength of 2, a symmetric key is suitable for use in production and, in the example, is stored in file helen_cust_dat.txt encrypted with Helen's public key so that only she can decrypt it. The gen_sym_key.sh script never displays the symmetric cipher key; the key in the text file on disk can only be decrypted with Helen's private key.

With the encrypt_sign_db_key.sh script, Helen uses her private key to decrypt the symmetric cipher key in helen_cust_dat.txt, encrypts it with Phil's public key, and signs it with her private key, creating a file called phil_cust_dat.txt. She sends this file to Phil, either as an e-mail attachment, or putting it in a mutually agreed upon location on disk. As before, even though the key is on disk, it can be decrypted only with Phil's private key. Note that from this point on, even if Helen is hit by a truck or resigns, Phil has access to the key and can use the same encrypt_sign_db_key.sh script to provide the key to, say, Xavier, Helen's successor. Helen preparing the key for Phil is shown below.


Phil now creates/updates master key configuration file which associates a key with an encrypted database. He can then create the encrypted database file with mupip create, load it with data and use it. Until the database is created and loaded with data, the key has no value and can be discarded at will. Once the database is created and loaded with the data, the key must be retained as long as access to the database - or even a backup thereof - is ever required. The entire process is illustrated below:


As a final check to make sure that the database was created with the correct symmetric cipher key and the correct cipher, Helen can use the gen_sym_hash.sh script to compute a hash from the key in helen_cust_dat.txt while Phil uses YottaDB's dse dump -fileheader -all command to print the key from the file header of the database file he creates. If the hashes match, the database file has been correctly created.

Below are scripts of the key management example above.

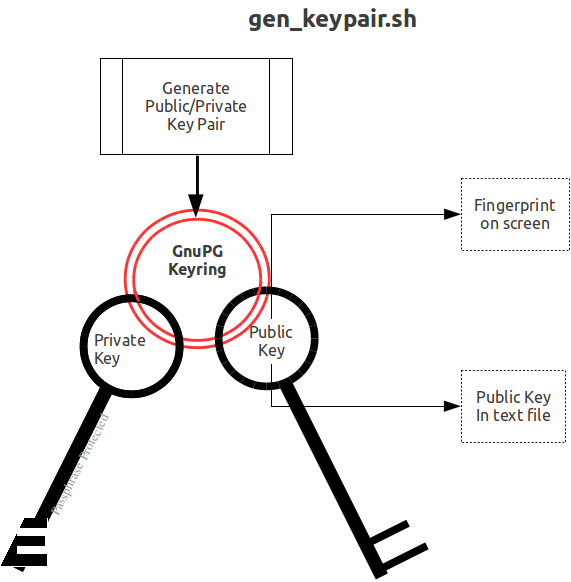

Helen creates a new GPG keyring with a public and private key pair:

helen$ export GNUPGHOME=$PWD/.helengnupg
helen$ $ydb_dist/plugin/gtmcrypt/gen_keypair.sh helen@yottadb Helen Keymaster
Passphrase for new keyring:
Verify passphrase:
Key ring will be created in /home/helen/.helengnupg
Key generation might take some time. Do something that will create entropy, like moving the mouse or typing in another session.
gpg: checking the trustdb
gpg: 3 marginal(s) needed, 1 complete(s) needed, PGP trust model
gpg: depth: 0 valid: 1 signed: 0 trust: 0-, 0q, 0n, 0m, 0f, 1u
pub 1024D/BC4D0739 2018-02-07
Key fingerprint = B38B 2427 5921 FFFA 5278 8A91 1F90 4A46 BC4D 0739
uid Helen Keymaster <helen@yottadb>
sub 2048R/A2E8A8E8 2018-02-07
Key pair created and public key exported in ASCII to helen@yottadb_pubkey.txt

Phil creates a new GPG keyring with a public and private key pair:

phil$ export GNUPGHOME=$PWD/.philgnupg
phil$ $ydb_dist/plugin/gtmcrypt/gen_keypair.sh phil@yottadb Phil Keyuser
Passphrase for new keyring:
Verify passphrase:
Key ring will be created in /home/phil/.philgnupg
Key generation might take some time. Do something that will create entropy, like moving the mouse or typing in another session.
gpg: checking the trustdb
gpg: 3 marginal(s) needed, 1 complete(s) needed, PGP trust model
gpg: depth: 0 valid: 1 signed: 0 trust: 0-, 0q, 0n, 0m, 0f, 1u
pub 1024D/A5719A99 2018-02-07
Key fingerprint = 886A BAFC E156 A9AD 7EA9 06EA 8B8B 9FAC A571 9A99
uid Phil Keyuser <phil@yottadb>
sub 2048R/AD37D5A0 2018-02-07
Key pair created and public key exported in ASCII to phil@yottadb_pubkey.txt

Helen sends Phil the file helen@yottadb_pubkey.txt and Phil sends Helen the file phil@yottadb_pubkey.txt.

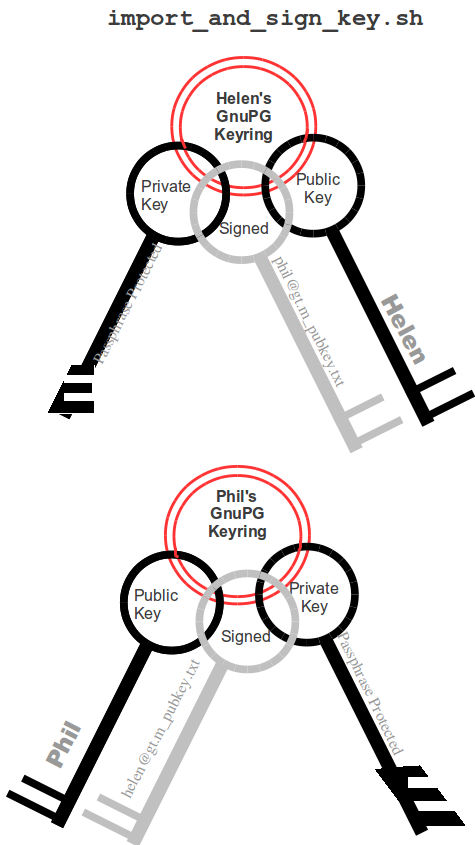

Helen imports Phil's public key into her keyring, verifying the fingerprint when she imports it, and signing it to confirm that she has verified the fingerprint:

helen$ $ydb_dist/plugin/gtmcrypt/import_and_sign_key.sh phil@yottadb_pubkey.txt phil@yottadb
gpg: key A5719A99: public key "Phil Keyuser <phil@yottadb>" imported
gpg: Total number processed: 1
gpg: imported: 1
pub 1024D/A5719A99 2018-02-07
Key fingerprint = 886A BAFC E156 A9AD 7EA9 06EA 8B8B 9FAC A571 9A99
uid Phil Keyuser <phil@yottadb>
sub 2048R/AD37D5A0 2018-02-07
Please confirm validity of the fingerprint above (y/n/[?]): y
Passphrase for keyring:
Successfully signed public key for phil@yottadb received in phil@yottadb_pubkey.txt

Phil likewise imports, verifies and signs Helen's public key:

phil$ $ydb_dist/plugin/gtmcrypt/import_and_sign_key.sh helen@yottadb_pubkey.txt helen@yottadb
gpg: key BC4D0739: public key "Helen Keymaster <helen@yottadb>" imported
gpg: Total number processed: 1
gpg: imported: 1
pub 1024D/BC4D0739 2018-02-07
Key fingerprint = B38B 2427 5921 FFFA 5278 8A91 1F90 4A46 BC4D 0739 uid Helen Keymaster <helen@yottadb>
sub 2048R/A2E8A8E8 2018-02-07
Please confirm validity of the fingerprint above (y/n/[?]): y
Passphrase for keyring:
Successfully signed public key for helen@yottadb received in helen@yottadb_pubkey.txt

Helen and Phil can now securely exchange information.

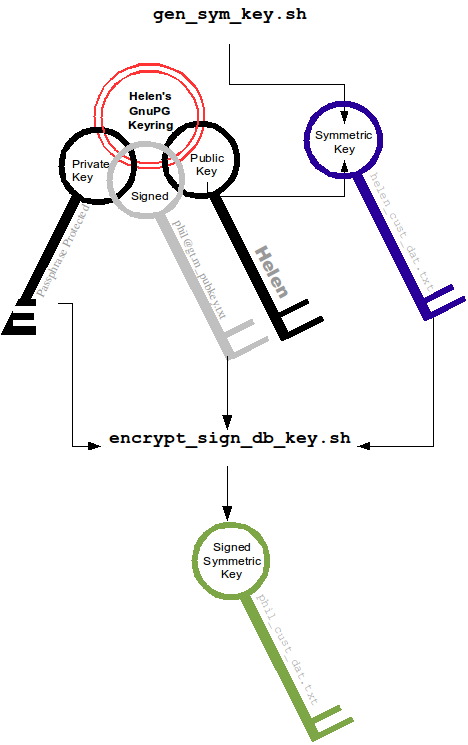

Helen generates a symmetric cipher key for the new database file cust.dat:

helen$ $ydb_dist/plugin/gtmcrypt/gen_sym_key.sh 2 helen_cust_dat.txt

Then she encrypts the symmetric cipher key with Phil's public key, signs it, and produces a file phil_cust_dat.txt that she can send Phil:

helen$ $ydb_dist/plugin/gtmcrypt/encrypt_sign_db_key.sh helen_cust_dat.txt phil_cust_dat.txt phil@yottadb
Passphrase for keyring:
gpg: checking the trustdb
gpg: 3 marginal(s) needed, 1 complete(s) needed, PGP trust model
gpg: depth: 0 valid: 1 signed: 1 trust: 0-, 0q, 0n, 0m, 0f, 1u
gpg: depth: 1 valid: 1 signed: 0 trust: 1-, 0q, 0n, 0m, 0f, 0u

Helen sends phil_cust_dat.txt file to Phil. Phil associates an encryption key with the database file using a configuration file in libconfig format.

In order to create the libconfig format encryption configuration file there are two approaches:

  1. Convert existing/older master key files to libconfig format configuration files by using CONVDBKEYS.m program. Follow the instructions provided at the top of the file.

  2. Create a new file using the format given below:

    database: {
            keys: (
                      dat: "database_file with its absolute path";
                      key: "encrypted keyfile with its absolute path";

    An example configuration file /home/phil/config_file is shown below:

    database: {
            keys: (
                      dat: "/home/phil/cust.dat";
                      key: "/home/phil/phil_cust_dat.txt";

Once the configuration file is created set the environment variables as shown below:

export ydb_crypt_config=*path to new config file*

For example:

export ydb_crypt_config=/home/phil/config_file

Once the environment variables are set, Phil creates a global directory, where he changes the configuration parameter for the database file cust.dat specifying that it be encrypted the next time it is created. (Remember that except for mapping from global variable names to database file names, configuration parameters in the global directory are used only when MUPIP creates new database files.) He then creates the database file, runs a DSE dump fileheader to extract the hash (highlighted in the output), and sends it to Helen for verification.

phil$ export ydb_gbldir=/home/phil/cust.gld
phil$ export ydb_passwd=””
phil$ $ydb_dist/mumps -dir
Enter Passphrase:
YDB>zsystem "$ydb_dist/mumps -run GDE"
%GDE-I-GDUSEDEFS, Using defaults for Global Directory
GDE> add -name cust -region=cusreg
GDE> add -region cusreg -dynamic=cusseg
GDE> add -segment cusseg -file=cust.dat
GDE> change -segment cusseg -encryption
GDE> exit
%GDE-I-VERIFY, Verification OK
%GDE-I-GDCREATE, Creating Global Directory file
YDB>zsystem "$ydb_dist/mupip create"
%YDB-I-DBFILECREATED, Database file /home/phil/cust.dat created
%YDB-I-DBFILECREATED, Database file /home/phil/mumps.dat created
YDB>zsystem "dse"
File         /home/phil/cust.dat
Region   CUSREG
DSE> dump -fileheader -all
File            /home/phil/cust.dat
Region          CUSREG
Date/Time       16-APR-2020 16:59:47 [$H = 65485,61187]
  Access method                          BG  Global Buffers                1024
  Reserved Bytes                          0  Block size (in bytes)         4096
  Maximum record size                   256  Starting VBN                   513
  Maximum key size                       64  Total blocks            0x00000065
  Null subscripts                     NEVER  Free blocks             0x00000062
  Standard Null Collation              TRUE  Free space              0x00000000
  Last Record Backup     0x0000000000000001  Extension Count                100
  Last Database Backup   0x0000000000000001  Number of local maps             1
  Last Bytestream Backup 0x0000000000000001  Lock space              0x00000028
  In critical section            0x00000000  Timers pending                   0
  Cache freeze id                0x00000000  Flush timer            00:00:01:00
  Freeze match                   0x00000000  Flush trigger                  960
  Freeze online                       FALSE  Freeze online autorelease    FALSE
  Current transaction    0x0000000000000001  No. of writes/flush              7
  Maximum TN             0xFFFFFFFF83FFFFFF  Certified for Upgrade to        V6
  Maximum TN Warn        0xFFFFFFFD93FFFFFF  Desired DB Format               V6
  Master Bitmap Size                    496  Blocks to Upgrade       0x00000000
  Create in progress                  FALSE  Modified cache blocks            0
  Reference count                         1  Wait Disk                        0
  Journal State                    DISABLED
  Mutex Hard Spin Count                 128  Mutex Sleep Spin Count         128
  Mutex Queue Slots                    1024  KILLs in progress                0
  Replication State                     OFF  Region Seqno    0x0000000000000001
  Zqgblmod Seqno         0x0000000000000000  Zqgblmod Trans  0x0000000000000000
  Endian Format                      LITTLE  Commit Wait Spin Count          16
  Database file encrypted              TRUE  Inst Freeze on Error         FALSE
  Spanning Node Absent                 TRUE  Maximum Key Size Assured      TRUE
  Defer allocation                     TRUE  Spin sleep time mask    0x00000000
  Async IO                              OFF  WIP queue cache blocks           0
  DB is auto-created                  FALSE  DB shares gvstats             TRUE
  LOCK shares DB critical section     FALSE  Read Only                      OFF
  Recover interrupted                 FALSE
  Reorg Sleep Nanoseconds                 0
                                             DB Current Minor Version        38
  Blks Last Record Backup        0x00000000  Last GT.M Minor Version         38
  Blks Last Stream Backup        0x00000000  DB Creation Version             V6
  Blks Last Comprehensive Backup 0x00000000  DB Creation Minor Version       38
  Total Global Buffers           0x00000400  Phase2 commit pid count 0x00000000
  Dirty Global Buffers           0x00000000  Write cache timer count 0xFFFFFFFF
  Free Global Buffers            0x00000400  wcs_wtstart pid count   0x00000000
  Write Cache is Blocked              FALSE  wcs_wtstart intent cnt  0x00000000
  Quick database rundown is active    FALSE
  Access control counter halted       FALSE  FTOK counter halted          FALSE
  Access control rundown bypasses         0  FTOK rundown bypasses            0
  Epoch taper                          TRUE
  Actual kills in progress                0  Abandoned Kills                  0
  Process(es) inhibiting KILLs            0  DB is a StatsDB              FALSE
  DB Trigger cycle of ^#t                 0
  MM defer_time                           0
  DB is (re)encryptable               FALSE
  DB encryption null IV mode          FALSE
  DB encryption hash cutoff              -1
  DB encr hash2 start TN 0x0000000000000000
  Database file encryption hash           1CAB2B28E706B9ED9CF7119C28356D1D435517
  Database file encryption hash2          00000000000000000000000000000000000000
  Full Block Writes                       0  Full Block Write Len             0
  TP blkmod nomod                  0

  TP blkmod gvcst srch             0

  TP blkmod t qread                0

  TP blkmod tp tend                0

  TP blkmod tp hist                0
  Free blocks                    251        Backup blocks                    0
  Reformat blocks                  0        Total blocks                   251
  Shmpool blocked              FALSE        File Offset     0x0000000000000000
  Shmpool crit holder              0        Backup_errno                     0
  Backup Process ID                0        Backup TN       0x0000000000000000
  Inc Backup TN   0x0000000000000000        Process Failed                   0
  Allocs since check               0        Backup Image Count               0
  Temp File:
  Database is Fully Upgraded                :  TRUE
  Database WAS ONCE Fully Upgraded from V4  :  TRUE
  Blocks to Upgrade subzero(negative) error : 0x00000000
  TN when Blocks to Upgrade last became 0   : 0x0000000000000000
  TN when Desired DB Format last changed    : 0x0000000000000000
  TN when REORG upgrd/dwngrd changed dbfmt  : 0x0000000000000000
  Block Number REORG upgrd/dwngrd will restart from : 0x00000000
  Upd reserved area [% global buffers]   50  Avg blks read per 100 records  200
  Pre read trigger factor [% upd rsrvd]  50  Upd writer trigger [%flshTrgr]  33
  Snapshot in progress                 FALSE   Number of active snapshots
  Snapshot cycle                            0  Active snapshot PID
  Snapshot TN                               0  Total blocks
  Free blocks                               0  Process failed
  Failure errno                             0  Snapshot shared memory identifier
  Snapshot file name
DSE> exit

Phil calls Helen with the hash, texts her phone, or sends her an e-mail. Helen ensures that the hash of the key she generated matches the hash of the database file created by Phil, and communicates her approval to Phil. Phil can now use the database. Either Phil or Helen can provide the key to other users who are authorized to access the database and with whom they have securely exchanged keys.

Instructions for Helen to verify the hash

helen$ $ydb_dist/plugin/gtmcrypt/gen_sym_hash.sh helen_cust_dat.txt
Passphrase for keyring:
gpg: encrypted with 2048-bit RSA key, ID B34EF4BD2C0B5B38, created 2020-04-16
      "Helen Keymaster <helen@yottadb>"

The encrypted database file cust.dat is now ready for use. That file, all journal files, backups, and binary extracts will all have the same symmetric encryption cipher and key, which means that software libraries that provide that cipher and copies of the key (encrypted with the public keys of all those who are authorized to access them) must be retained as long as there may be any need to access data in that database file, its journal files, extracts and backups.

The following command sequence diagram illustrates how Helen and Phil operate with one another.


Updating GPG configuration

GPG configuration should be updated to ensure that commands are not executed when the wrong passphrase is used. The passphrase might be cached after it is entered the first time. Once a correct passphrase is entered and it is cached, incorrect passphrase entry still allows access to data blocks which is not expected.

To prevent this behavior add the following line to the $GNUPGHOME/gpg-agent.conf file:

default-cache-ttl 0

Once gpg-agent.conf is updated, ensure that gpg-agent is restarted.

# Executing the following command will restart gpg-agent on its next access
gpgconf --kill gpg-agent

Now, the passphrase will not be cached and an error will be seen when the wrong passphrase is used.

Test access to data blocks with wrong passphrase

If you enter the wrong passphrase YDB issues an error and prevents execution when trying to access encrypted data blocks. The DSE fileheader is meta data which is not encrypted, and which should be readable whether or not the process has the password for the database file. But, even here an error is seen before the command gives a result.

phil$ $ydb_dist/mumps -dir
Enter Passphrase:
YDB>set ^cust=1
%YDB-E-CRYPTKEYFETCHFAILED, Could not retrieve encryption key corresponding to file /home/phil/cust.dat. Incorrect password
or error while obtaining password

YDB>zsystem "dse"
%YDB-W-CRYPTKEYFETCHFAILED, Could not retrieve encryption key corresponding to file /home/phil/cust.dat. Incorrect password
or error while obtaining password

File  /home/phil/cust.dat

Tested Reference Implementations

YottaDB database encryption comes with a source reference implementation that should compile "out of the box" with selected encryption packages. You can use this for initial development and testing with YottaDB database encryption. There are many encryption packages. As discussed earlier, YottaDB neither endorses nor supports any specific cipher or package. For production use, you take responsibility for choosing, implementing and procuring support for your preferred package. Please remember that a malfunction in your chosen encryption package may result in unrecoverable data and YottaDB will be unable to help you.

The Plugin Architecture and Interface section below details the reference implementation, which is provided with full source code that you can freely modify for your own use.

The reference implementation uses:

  • The key ring on disk implemented by GPG.

  • For public key encryption including the generation of public/private key pairs: RSA as implemented by GPG.

  • For the cryptographic hash: SHA-512.

  • For a programmatic interface to GPG: libgpgme.

  • To provide error messages for GPG: libgpg-error.

  • For symmetric encryption: AES256CFB implemented by libgcrypt on all platforms.

When a YottaDB process first opens a shared library providing an encryption plugin, it ensures that the library resides in $ydb_dist/plugin or a subdirectory thereof. This ensures that any library implementing an encryption plugin requires the same permissions to install, and is protected by the same access controls as the YottaDB installation itself.

On all platforms on which YottaDB supports encryption, compiling the source reference implementation produces the shared library plugins, libgtmcrypt_gcrypt_AES256CFB.so and libgtmcrypt_openssl_AES256CFB.so. libgtmcrypt.so is a symbolic link to libgtmcrypt_gcrypt_AES256CFB.so.


Encrypted database files are compatible between different endian platforms as long as they use the same key and the same cipher. The sample shell scripts in the reference implementation use the standard shell (/bin/sh).


YottaDB dropped support for the Blowfish encryption plugin. To migrate databases from Blowfish CFB to AES CFB requires that the data be extracted and loaded into newly created database files. To minimize the time your application is unavailable, you can deploy your application in a Logical Multi-Site (LMS) configuration, and migrate using a rolling upgrade technique. Refer to the Chapter 7: “Database Replication” for more complete documentation.

Special Note - GNU Privacy Guard and Agents

The GNU Privacy Guard (GPG) supports the use of an agent to manage encrypted keys. Agents allow for protocol independent access to keys stored in users' GPG keyrings.

YottaDB strongly recommends using a separate keyring and configuration for YottaDB applications. The GPG keyring and related configuration files reside in $GNUPGHOME. Using a separate $GNUPGHOME insulates the YottaDB application from interference with any user desktop/workstation environment. Configuration options necessary to support YottaDB could negatively impact other programs and vice versa.

Starting with GPG version 2, GPG required the use of the agent. However, in testing, YottaDB has found that GPG Classic versions 1.4.16 and up, may also require an agent. While the following information is valid as of GPG release 2.1.18, later versions may introduce some wrinkles in the agent operation. Users must familiarize themselves with GPG while setting up encryption.

While GPG comes with an agent program, gpg-agent, other parties often provide their own agent implementation, e.g. gnome-keyring-daemon. These third party agents often start up, as a convenience, during user login to provide password and key caching services. Agents typically define GPG_AGENT_INFO in the environment pointing to a socket file. Since third-party agents define GPG_AGENT_INFO in the environment, YottaDB scripts must undefine it to avoid communicating with the third party agents. It is possible that these third-party agents create the GPG default socket file $GNUPGHOME/S.gpg-agent. Using a separate $GNUPGHOME insulates a YottaDB application from third party agents.

When invoking GPG via GPGME, there is no convenient way to avoid invoking an agent that obtains the passphrase for the keyring from the user. When the reference implementation has placed an obfuscated password in the environment, the password should be derived from that obfuscated password, and the user should not be prompted for the password. By default the GPG agent calls /usr/bin/pinentry the pinentry program. YottaDB provides a custom pinentry function for YottaDB's encryption reference implementation (packaged in pinentry-gtm.sh and pinentry.m).


Spurious CRYPTKEYFETCHFAILED errors: A defect that affects GnuPG 2.0+ versions causes the gpg-agent to fail decrypting the GnuPG private key that secures the database encryption key. This decryption failure results in spurious CRYPTKEYFETCHFAILED errors during process startup or re-encryption. This defect appears more frequently with GnuPG releases starting at 2.1.15. At the time of this writing, Ubuntu 17.04 - 17.10, Debian 9 and Fedora 26 - 27 all have the affected GnuPG versions. However Fedora 26 - 27 are slated to receive fixed versions. GPG versions 2.1.15 and up suffer from persistent CRYPTKEYFETCHFAILED errors. The only recommended course of action is to upgrade to GnuPG 2.2.4 and libgcrypt 1.8.2 which contain the fixes for the defects https://dev.gnupg.org/T3473 and https://dev.gnupg.org/T3530. The GPG fixes that address the CRYPTKEYFETCHFAILED errors require additional gpg-agent configuration options listed below.

Using the Reference Implementation's Custom pinentry Program

pinentry-gtm.sh is a custom pinentry program that prevents prompting for keyring passphrase by GNU Privacy Guard operations when the environment variable ydb_passwd is already defined. When there is a GETPIN request and the ydb_passwd environment variable is defined, pinentry-gtm.sh runs pinentry.m and returns to the calling program. Custom pinentry programs like pinentry-gtm.sh are meaningful only when you set ydb_passwd to an obfuscated passphrase. When the environment variable ydb_passwd is not defined or a usable yottadb or pinentry.m does not exists, pinentry-gtm.sh runs the default pinentry program and prompts for passphrase. Remember that pinentry.m can reveal the passphrase. Therefore, ensure that you restrict the access for the pinentry.m's object file to only those users who manage your keys. YottaDB provides pinentry-gtm.sh as a convenience to those users who are bothered by prompting for keyring passphrases for GNU Privacy Guard related operations. Neither pinentry-gtm.sh nor pinentry.m is used internally by any YottaDB database operation.


When you set ydb_passwd to "", YottaDB obtains the passphrase using the default GTMCRYPT passphrase prompt. When ydb_passwd is set to "", you can neither use a pinentry program (custom or default) to obtain a passphrase nor customize the default GTMCRYPT passphrase prompt.

To use the custom pinentry program, you need to perform the following setup actions:

At the OS level, ensure that the default pinentry program for servers is the "curses" pinentry executable and not the GUI version. Should the custom pinentry program fail, GPG invokes the default pinentry program. If the default pinentry program is for the GUI, a console user typically would not become aware of the password request.

For Redhat systems use 'yum search pinentry' to search for the available pinentry programs for the "curses" version.

For Debian and Ubuntu systems use 'apt search pinentry' to search for the available pinentry programs for the "curses" version.

The YottaDB scripts must undefine GPG_AGENT_INFO.

The YottaDB scripts must define GPG_TTY or the (GPG 2.1 and up) pinentry program may not work. e.g.:

export GPG_TTY=$tty

Set up the encryption keys using the gen_keypair.sh script. This script creates a file gpg-agent.conf in the GnuPG directory (specified by the environment variable $GNUPGHOME) with the following line directing GPG to invoke the reference implementation's custom pinentry program.

pinentry-program <path to $ydb_dist>/plugin/gtmcrypt/pinetry-gtm.sh

When pinetry-gtm.sh finds the environment variable $ydb_passwd defined and an executable YottaDB, it runs the pinentry.m program which provides GnuPG with the keyring password from the obfuscated password. Otherwise, it calls /usr/bin/pinentry.

The custom pinentry program uses a YottaDB external call. Each YottaDB application that uses encryption must define the environment variable ydb_xc_gpgagent to point to the location of gpgagent.tab. By default, the reference implementation places gpgagent.tab in the $ydb_dist/plugin/directory. gpgagent.tab is an external call table that pinentry.m uses to unmask the obfuscated password stored in ydb_passwd.

Direct the gpg-agent to use its standard Unix domain socket file, $GNUPGHOME/S.agent, when listening for password requests. Enabling the standard socket simplifies the gpg-agent configuration. Enable the standard socket by adding the following configuration option to $GNUPGHOME/gpg-agent.conf.

echo "use-standard-socket" >> $GNUPGHOME/gpg-agent.conf

When using GPG 2.1.12 and up, enable loopback pinentry mode by adding the following configuration option to $GNUPGHOME/gpg-agent.conf. With this option in place, the agent can call back to YottaDB directly for the passphrase if GPG directs it to do so.

echo "allow-loopback-pinentry" >> $GNUPGHOME/gpg-agent.conf

When using GPG 2.1.12 and up with prior versions of YottaDB, you can bypass the agent by forcing GPG to use pinentry loopback mode, by adding the following configuration option to $GNUPGHOME/gpg.conf. This eliminates the custom pinentry progam configuration.

echo "pinentry-mode=loopback" >> $GNUPGHOME/gpg.conf

When using GPG 2.2.24 and up use the option to auto-increase secmem in gpg-agent (https://dev.gnupg.org/T3530)

echo "--auto-expand-secmem" >> $GNUPGHOME/gpg-agent.conf

When using GPG 2.2.24 and up use the option to increase the configurable backlog for sockets (https://dev.gnupg.org/T3473)

echo "--listen-backlog 128" >> $GNUPGHOME/gpg-agent.conf


The YottaDB pinentry function should not be used while changing the keyring passphrase, e.g., the passwd subcommand of the gpg –edit-key command. Depending upon the gpg version ("man gpg" to confirm) you can override the agent configuration. Otherwise, you will need to temporarily comment out the pinentry-program line in gpg-agent.conf by placing a "#" in front of the line, e.g.:

#pinentry-program <path to $ydb_dist>/plugin/gtmcrypt/pinetry-gtm.sh


The normal YottaDB installation script does not automatically install YottaDB with the reference implementation plug-in. You will need to follow the compilation instructions in the Compiling the Reference Implementation Plugin section.

If the encryption libraries are not part of the automatic search path on your system, you will need to take action specific to your operating system and directory structure to make them accessible. For example, you may need to set one of the environment variables $LD_LIBRARY_PATH or $LIBPATH, for example: export LIBPATH="/lib:/usr/lib:/usr/local/lib" and/or run the ldconfig command.

You must also implement appropriate key management, including ensuring that users have appropriate values for $ydb_crypt_config.

The structure of the $ydb_dist/plugin directory on Linux x86 after plugin compilation is as follows:

| -- gpgagent.tab
| -- gtmcrypt
|   | -- Makefile
|   | -- README
|   | -- encrypt_sign_db_key.sh
|   | -- gen_keypair.sh
|   | -- gen_sym_hash.sh
|   | -- gen_sym_key.sh
|   | -- gtm_tls_impl.c
|   | -- gtm_tls_impl.h
|   | -- gtm_tls_interface.h
|   | -- gtmcrypt_dbk_ref.c
|   | -- gtmcrypt_dbk_ref.h
|   | -- gtmcrypt_interface.h
|   | -- gtmcrypt_pk_ref.c
|   | -- gtmcrypt_pk_ref.h
|   | -- gtmcrypt_ref.c
|   | -- gtmcrypt_ref.h
|   | -- gtmcrypt_sym_ref.c
|   | -- gtmcrypt_sym_ref.h
|   | -- gtmcrypt_util.c
|   | -- gtmcrypt_util.h
|   | -- import_and_sign_key.sh
|   | -- maskpass
|   | -- maskpass.c
|   | -- pinentry-gtm.sh
|   | -- pinentry.m
|   | -- show_install_config.sh
|   ` -- source.tar
| -- libgtmcrypt_gcrypt_AES256CFB.so
| -- libgtmcrypt_openssl_AES256CFB.so
| -- libgtmcrypt.so -> ./libgtmcrypt_gcrypt_AES256CFB.so
| -- o
` -- r

Administration and Operation of Encrypted Databases

Utility programs written in M (such as %GO) run within yottadb processes and behave like any other code written in M. Encryption keys are required if the yottadb process accesses encrypted databases. A process running a utility program written in M that does not access encrypted databases (such as %RSEL) does not need encryption keys just to run the utility program.

Utility programs not written in M (e.g., MUPIP) that need access to encryption keys do not prompt for the password to the key ring on disk. They require the obfuscated password to be available in the environment. You can use the maskpass program to set the password in the environment or an yottadb wrapper process as discussed earlier to set the obfuscated password in the environment. In some cases, if a required key is not supplied, or if an incorrect key is specified, the utility program defers reporting the error at process start up in case subsequent actions don't require access to encrypted data, and instead reports it when first attempting an encryption or decryption operation.

Since they do not access application data at rest, the GDE and LKE utilities do not need access to encryption keys to operate with encrypted databases.

MUPIP and DSE use the same plug-in architecture as yottadb processes - gtmcrypt_init() to acquire keys, gtmcrypt_encrypt() to encrypt, etc.

Utility Programs


Since the global directory file is never encrypted, GDE does not need access to encryption keys.


The need to support encryption brings an upgrade to the global directory format, whether or not you use encryption. Simply opening an existing global directory with GDE and closing the program with an EXIT command upgrades the global directory.


YottaDB strongly recommends you make a copy of any global directory before upgrading it. There is no way to downgrade a global directory - you need to recreate it.

If you inadvertently upgrade a global directory to the new format and wish to recreate the old global directory, execute the SHOW ALL command with the new YottaDB release and capture the output. Use the information in the SHOW ALL command to create a new global directory file with the prior YottaDB release, or better yet, create a script that you can feed to GDE to create a new global directory.


-[NO]ENcryption is a SEGMENT qualifier. When creating the database file for a segment that is flagged as encrypted, MUPIP CREATE acquires an encryption key for that file, and puts a cryptographic hash of the key in the database file header.


Except for the following commands where it does not need encryption keys to operate on encrypted databases, MUPIP needs access to encryption keys to operate on encrypted databases: BACKUP -BYTESTREAM, EXIT, EXTEND, FTOK, HELP, INTRPT, REPLICATE, RUNDOWN, STOP. MUPIP looks for the password for the key ring on disk in the environment variable $ydb_passwd, terminating with an error if it is unable to get a matching key for any database, journal, backup or extract file that contains encrypted data.


MUPIP JOURNAL operations that only operate on the journal file without requiring access to the database - EXTRACT and SHOW - require only the key for the journal file, not the current database file key. MUPIP SET operations that require stand-alone access to the database do not need encryption keys; any command that can operate with concurrent access to the database requires encryption keys. All other MUPIP operations require access to database encryption keys. MUPIP EXTRACT -FORMAT=ZWRITE or -FORMAT=GLO and MUPIP JOURNAL -EXTRACT are intended to produce readable database content, and produce cleartext output even when database and journal files are encrypted. Since a MUPIP EXTRACT -FORMAT=BINARY extract file can contain encrypted data from multiple database files, the extract file contains the hashes for all database files from which extracted data was obtained.


MUPIP CREATE is the only command that uses the database_filename in the master key file to obtain the key from the corresponding key_filename. As discussed elsewhere, all other commands use the key from the key ring in memory that matches the cryptographic hash for the encrypted data. If there are multiple files with the same file name, MUPIP CREATE uses the key specified in the last database_filename entry with that name in the master key file.


The MUPIP JOURNAL -SHOW command now displays the cryptographic hash of the symmetric key stored in the journal file header (the output is one long line):

$ mupip journal -show -backward yottadb.mjl 2>&1 | grep hash
Journal file hash F226703EC502E9757848 ...

Since an extract may contain the cryptographic hashes of multiple database files from which the data has been extracted, MUPIP LOAD may require multiple keys even to load one database file. Additionally, the database file into which the data is being loaded may have a different key from any data in the extract.


Unless you are acting under the specific instructions of YottaDB support, please provide DSE with access to encryption keys by setting the value of $ydb_passwd in the environment.

DSE operations that operate on the file header (such as CHANGE -FILEHEADER) do not need access to database encryption keys, whereas DSE operations that access data blocks (such as DUMP -BLOCK) usually require access to encryption keys. However, all DSE operations potentially require access to encryption keys because if DSE is the last process to exit a database, it will need to flush dirty global buffers, for which it will need the encryption keys. DSE does not encrypt block dumps. There is a current misfeature, that access to the database key is needed to look at block 0 (a bitmap). In practical usage this is not a severe restriction since typically when a bitmap is examined data records are also examined (which require the key anyway).

Please remember that DSE is a low level utility for use by knowledgeable users, and does not check for reasonableness of commands and values.

The DSE DUMP -FILEHEADER -ALL command shows the database file header, including the encryption hash (the hash is a very long line):

$ dse dump -fileheader -all 2>&1 | grep hash
Database file encryption hash F226703EC502E9757848EEC733E1C3CABE5AC...
Changing the hash in the database file header

Under normal operating conditions, you should not need to change the cryptographic hash of the symmetric key. However, since there are theoretical attacks against hashes, and because there exists a new cryptographic hash standard (SHA-3) as of this date, DSE provides the ability to change the hash of the password stored in the database file header if and when you change the hash library.

The DSE CHANGE -FILEHEADER -ENCRYPTION_HASH function hashes the symmetric key in the key file and replaces the hash in the database file header with this new value. The procedure to change the hash is:

  • With the old hash function linked to your plug-in, ensure that the database is structurally sound with a MUPIP INTEG. Although changing the hash in the file header makes no change to any data block, you will have more confidence in your work, and easier troubleshooting in the event of subsequent problems, if you verify database wholesomeness before proceeding.

  • Switch the plug-in to use the new hash function.


  • Since recovery is not possible with a prior generation journal file with a different hash, if the database is journaled, create a new journal file without a back-pointer using the MUPIP SET -JOURNAL -NOPREVJNL command. YottaDB suggests backing up the database at this time.

  • Verify the correctness of the new hash function by reading a global node or with a DSE DUMP -BLOCK command.

As there is no way to change the hash in a journal file header, make sure that you retain access to the hash packages used for any journal file as long as you want the data in old journal files to be accessible. These old journal files with different hashes cannot be used for database recovery. The data in them can, however, be accessed with a MUPIP JOURNAL -EXTRACT command by a MUPIP process using the old hash function.

As there is no way to change the hash in a journal file header, make sure that you retain access to the hash packages used for any journal file as long as you want the data in old journal files to be accessible. These old journal files with different hashes cannot be used for database recovery. The data in them can, however, be accessed with a MUPIP JOURNAL -EXTRACT command by a MUPIP process using the old hash function.

Changing Encryption Keys

YottaDB recommends rotating (changing) the encryption key of the database for better security. The frequency of encryption key rotation depends on your security requirements and policies. MUPIP REORG -ENCRYPT provides the option to encrypt a database or rotate the keys of an already encrypted database. If you are using replication, you can encrypt the replicating secondary instance first to prevent your originating primary instance from any additional IO load that MUPIP REORG -ENCRYPT may add. YottaDB suggests using different encryption keys for different instances, so that if the keys for one instance are compromised, the application can be kept available from another instance whose keys are not compromised, while changing the encryption keys on the instance with compromised keys. For more information, refer to “-Encrypt”.

Database Creation

To create a new encrypted database, first use GDE to flag the database file for encryption (with the -ENCRYPTION segment qualifier). Then, create a $ydb_crypt_config file and work with your security team to obtain the relevant encryption keys. Then, use the maskpass utility to set the environment variable ydb_passwd to the obfuscated form of the passphrase keyring. Finally, execute MUPIP CREATE to create an encrypted database and MUPIP REORG -ENCRYPT=<encr_key> to encrypt the blocks of the database.

Once you encrypt a database, you cannot turn off encryption, it stays encrypted even if you specify MUPIP SET -NOENCRYPTABLE. If you wish any of the data in an encrypted database to be available unencrypted, you must extract the data and load it into a new database created to be unencypted and appropriately map the new database with a global directory. You can also use a MERGE command and multiple global directories to move data in either direction between encrypted and unencrypted database files.

Plugin Architecture and Interface

As noted in the Tested Reference Implementations, YottaDB includes the source code to a reference implementation that uses widely available encryption packages. It is your choice: you can decide to use the packages that YottaDB was tested against, or you can choose to interface YottaDB to any other package of your choice. As noted earlier, YottaDB neither recommends nor supports any specific package (not even those that we test against) and you should ensure that you have confidence in and support for whichever package you intend to use in production. The reference implementation is provided as ready-to-compile source code that you can customize to meet your needs.

Building the reference implementation from source code requires the standard development tools for your platform, including the C compiler, make, ld, standard header files, header files for encryption libraries, etc.

This section discusses the architecture of and interface between YottaDB and the plugin. You must ensure that any plugin you provide presents the same interface to YottaDB as the reference implementation.


The reference implementation source code by default resides in $ydb_dist/plugin/gtmcrypt/source.tar.

The reference implementation includes:

A $ydb_dist/plugin/gtmcrypt/source.tar archive with all source files and scripts. The archive includes a Makefile to build/install the plugins and "helper" scripts. A brief description of these scripts is as follows:


Reports the cryptographic library and cipher that a YottaDB process would use, from $ydb_crypt_plugin, if it has a value and otherwise from the name of the library linked to by libgtmcrypt.so.


Uses show_install_config.sh to identify the currently installed encryption configuration so that it can generate the appropriate cryptographic hash for the provided symmetric key.


Imports and signs one another's public keys.


Generates a symmetric cipher key for others to use in encrypting a database file.


Uses a private key to decrypt the symmetric cipher key, encrypts it with the other's public key, and signs it with the private key.

The plugin interface that YottaDB expects is defined in gtmcrypt_interface.h. Never modify this file - it defines the interface that the plugin must provide.

A Makefile to build and install each of the encryption plugin libraries. The Makefile conforms to the regular use pattern of "make && make install && make clean". Building the reference plugin libraries requires a compiler and development libraries for GPG and OpenSSL. Different computing platforms may use different file extensions for shared libraries, including .sl and .dll. This document uses .so for readability, but the actual name may vary on your platform.

The reference plugins are:


Call-out interface table to let M programs unobfuscate $ydb_passwd


A symlink to the default encryption library


The reference plugin that leverages GPG for encryption using the AES256CFB algorithm


The reference plugin that leverages OpenSSL for encryption using the AES256CFB algorithm


A reference plugin support library


The reference plugin that leverages OpenSSL for transport encryption features for the M language


Program to mask the password stored in $ydb_passwd

Extensions to the YottaDB External Interface

YottaDB provides additional C structure types (in the gtmxc_types.h file):

  • gtmcrypt_key_t - a datatype that is a handle to a key. The YottaDB database engine itself does not manipulate keys. The plug-in keeps the keys, and provides the handles to keys that the YottaDB database engine uses to refer to keys.

  • xc_fileid_ptr_t - a pointer to a structure maintained by YottaDB to uniquely identify a file. Note that a file may have multiple names - not only as a consequence of absolute and relative path names, but also because of symbolic links and also because a file system can be mounted at more than one place in the file name hierarchy. YottaDB needs to be able to uniquely identify files.

Although not required to be used by a customized plugin implementation, YottaDB provides (and the reference implementation uses) the following functions for uniquely identifying files:

  • xc_status_t gtm_filename_to_id(xc_string_t *filename, xc_fileid_ptr_t *fileid) - function that takes a file name and provides the file id structure for that file.

  • xc_status_t gtm_is_file_identical(xc_fileid_ptr_t fileid1, xc_fileid_ptr_t fileid2) - function that determines whether two file ids map to the same file.

  • gtm_xcfileid_free(xc_fileid_ptr_t fileid) - function to release a file id structure.


M, MUPIP and DSE processes dynamically link to the plugin interface functions that reside in the shared library. The functions serve as software "shims" to interface with an encryption library such as libmcrypt or libgpgme/libgcrypt.

The plugin interface functions are:

  1. gtmcrypt_close()

  2. gtmcrypt_encrypt_decrypt()

  3. gtmcrypt_init()

  4. gtmcrypt_init_db_cipher_context_by_hash()

  5. gtmcrypt_init_device_cipher_context_by_keyname()

  6. gtmcrypt_obtain_db_key_hash_by_keyname()

  7. gtmcrypt_release_cipher_context()

  8. gtmcrypt_same_key()

  9. gtmcrypt_strerror()

A YottaDB database consists of multiple database files, each of which has its own encryption key, although you can use the same key for multiple files. Thus, the gtmcrypt* functions are capable of managing multiple keys for multiple database files. Prototypes for these functions are in ydbcrypt_interface.h, which is included with the encryption plugin..

The core plugin interface functions, all of which return a value of type ydb_status_t are:

  • gtmcrypt_init() performs initialization. If the environment variable $ydb_passwd exists and has an empty string value, YottaDB calls gtmcrypt_init() before the first M program is loaded; otherwise it calls gtmcrypt_init() when it attempts the first operation on an encrypted database file.

  • Generally, gtmcrypt_init_db_cipher_context_by_hash() or for MUPIP CREATE, gtmcrypt_init_device_cipher_context_by_keyname() performs key acquisition, and places the keys where gtmcrypt_encrypt_decrypt() can find them when they are called.

  • Whenever YottaDB needs to decode a block of bytes, it calls gtmcrypt_encrypt_decrypt() to decode the encrypted data. At the level at which YottaDB database encryption operates, it does not matter what the data is - numeric data, string data whether in M or UTF-8 mode and whether or not modified by a collation algorithm. Encryption and decryption simply operate on a series of bytes.

  • Whenever YottaDB needs to encrypt a block of bytes, it calls gtmcrypt_encrypt_decrypt() to encrypt the data.

  • If encryption has been used (if gtmcrypt_init() was previously called and it returned success), YottaDB calls gtmcrypt_close() at process exit and before generating a core file. gtmcrypt_close() must erase keys in memory to ensure that no cleartext keys are visible in the core file.

More detailed descriptions follow.


gtm_status_t gtmcrypt_close(void);

Disable encryption and discard any sensitive data in memory.


gtm_status_t gtmcrypt_encrypt_decrypt(gtmcrypt_key_t handle, gtm_char_t *src_block, gtm_int_t src_block_len, gtm_char_t *dest_block, gtm_int_t operation, gtm_int_t iv_mode, gtm_string_t iv);

Perform encryption or decryption of the provided data based on the specified encryption/decryption state. If the target buffer pointer is NULL, the operation is done in-place. It is also possible to set the initialization vector (IV) to a particular value, or reset it to the original value, before attempting the operation. Note that the changes are persistent.


gtm_status_t gtmcrypt_init(gtm_int_t flags);

Initializes encryption if not yet initialized. Use this function to load necessary libraries and set appropriate configuration options. Upon a successful return this function is never invoked again.


gtm_status_t gtmcrypt_init_db_cipher_context_by_hash(gtmcrypt_key_t *handle, gtm_string_t key_hash, gtm_string_t db_path, gtm_string_t iv);

Finds the key by hash and database path and sets up database encryption and decryption state objects, if not created yet. Use this function to locate a particular key by its hash and, if found, initialize the objects for subsequent encryption and decryption operations on any database that will use this key, unless already initialized. If the db_path argument specifies a non-null string, then the key should additionally correspond to that database in the configuration file.

The reason that any database relying on the same key may use the same encryption and decryption state objects is this: Every database's encryption and decryption handles are initialized with a null IV, and every block is processed using either a null IV or IV corresponding to the block number. So, for every encryption and decryption operation the IV is always preset to the "correct" value, effectively making it suitable for every database that uses the same hash.


gtm_status_t gtmcrypt_init_device_cipher_context_by_keyname(gtmcrypt_key_t *handle, gtm_string_t key_name, gtm_string_t iv, gtm_int_t operation);

Finds the key by its name and sets up device encryption or decryption state object. Use this function to locate a particular key by its name (as specified in the configuration file) and, if found, initialize an object for subsequent encryption or decryption operations (depending on the 'encrypt' parameter) with one device using this key. Note that, unlike databases, different devices relying on the same key require individual encryption and decryption state objects as their states evolve with each encryption or decryption operation.


gtm_status_t gtmcrypt_obtain_db_key_hash_by_keyname(gtm_string_t db_path, gtm_string_t key_path, gtm_string_t *hash_dest);

Find the key by the path of the database it corresponds to as well as its own path, and obtain its hash. Use this function to locate a particular key by the path of the database that is associated with the key in the configuration file and calculate (or copy, if precalculated) its hash to the 'hash_dest' address. If the key_path argument specifies a non-null string, then the key should have the corresponding path; otherwise, the last of all keys associated with the specified database in the configuration file is used.


gtm_status_t gtmcrypt_release_cipher_context(gtmcrypt_key_t handle);

Release the specified encryption or decryption state object, also releasing the decryption state if database encryption state is specified.


gtm_int_t gtmcrypt_same_key(gtmcrypt_key_t handle1, gtmcrypt_key_t handle2);

Compare the keys associated with two encryption or decryption state objects.


gtm_char_t  *gtmcrypt_strerror(void);

Returns the error string. Use this function to provide the current error status. The function is normally invoked following a non-zero return from one of the other functions defined in the interface, which means that each of them should start by clearing the error buffer.

The complete source code for reference implementations of these functions is provided, licensed under the same terms as YottaDB. You are at liberty to modify them to suit your specific YottaDB database encryption needs.

Using the Reference Implementation with Older Releases

The interface between YottaDB and the encryption libraries has changed over time. Custom encryption libraries should be verified to work with newer version before deployment into production.
